From cleaning to grading, the SEMA solar powered multi-stage mini mill handles end-to-end rice processing.

-

Our machinery is compatible with six and ten kilowatt back-up systems for seamless functioning under all weather conditions. Our system consists of the following blocks:

1.

SOLAR PANEL

Our system consist of two 350W solar panels in a string and 6 parallel strings

2.

GRID INPUT

The grid input powers the controller block with constant 11A

3.

BATTERY

Our system contains a lithium battery pack rated up to 48V, 10kWh

4.

HYBRID CONTROLLER

The System consists of an inbuilt hybrid charge controller rated 48V, 80A

5.

DC LOAD LIMITER

The DC Load Limiter controls all four loads with different current ratings

6.

48V LOADS

Our four loads include the Pre-cleaner, the Huller, the Polisher, and the Grader

SEMA PRE-CLEANER

Model : PC250

Capacity : 250KG

Material : Stainless steel (for paddy handling), MS zinc plated and powder quoted for mechanical parts, En 8 hardened for shafts

Power : 0.5 HP

Voltage : 48VDC

Rated current : 9.6 Amps (no load current 7.5 Amps, full load current 7.5 Amps)

No. of sieves : 3 (more available on demand)

Blower : For half rice

No. of outlets : 4

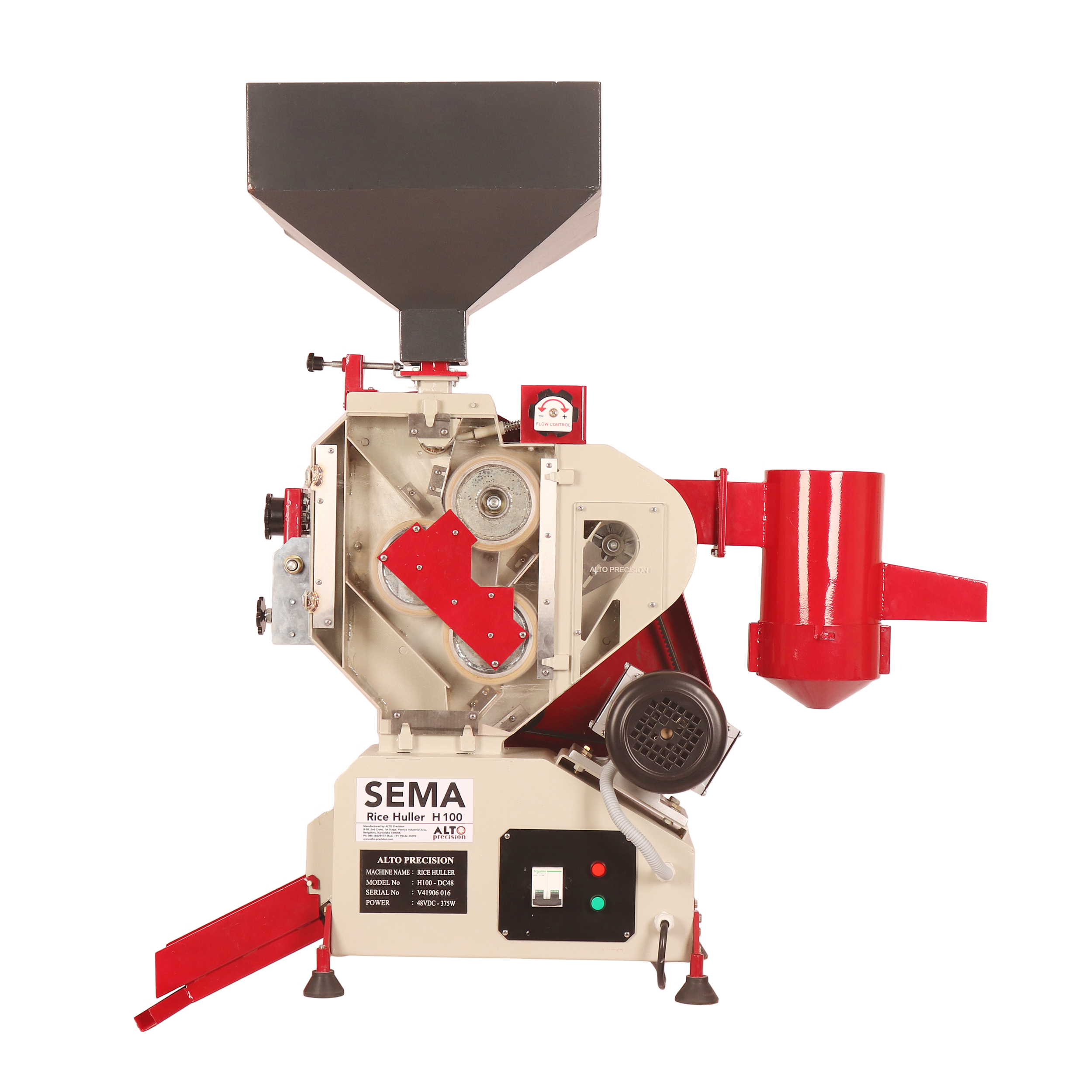

Model : H100

Type : Triple roller with aspirator and broken rice re-claim chamber

Capacity : 80-100kg/hr

Hulling efficiency : 90-95% @100kg/hr

Husk rice outlet : >1%

Rice in husk outlet : >2% (reclaimed in aspirator)

Power : 0.5HP

Voltage : 48VDC

Rated Current : 9.6 Amps (no load current 4 Amps, full load current 8 Amps)

Material : Shaft - EN 8 | Body - mild steel zinc plated and powder quoted | Baffle - stainless steal

Blower : Adjustable

Hopper Capacity : 20kg

Broken rice chamber : 0.3kg

Model : FP 70

Type :Horizontal

Material : Stainless steel

Capacity : 70kg/hr (8% polishing)

Power : 1.5 HP

Voltage : 48VDC

Rated Current : 29.9 Amps (no load current 7 Amps, full load current 27 Amps)

Polishing level : 0-8% (adjustable)

Polishing efficiency : <95%

Bran Aspiration : <90%

Broken rice reclaim : Yes

Model : LG180

Type : Length grader

Capacity : Medium grain 200-220 | Long grain 180-200

Material : Stainless steel

Power : 0.5HP

Voltage : 48VDC

Rated current : 9.6 Amps (no load current 5 Amps, full load current 5 Amps)

RPM : 38
